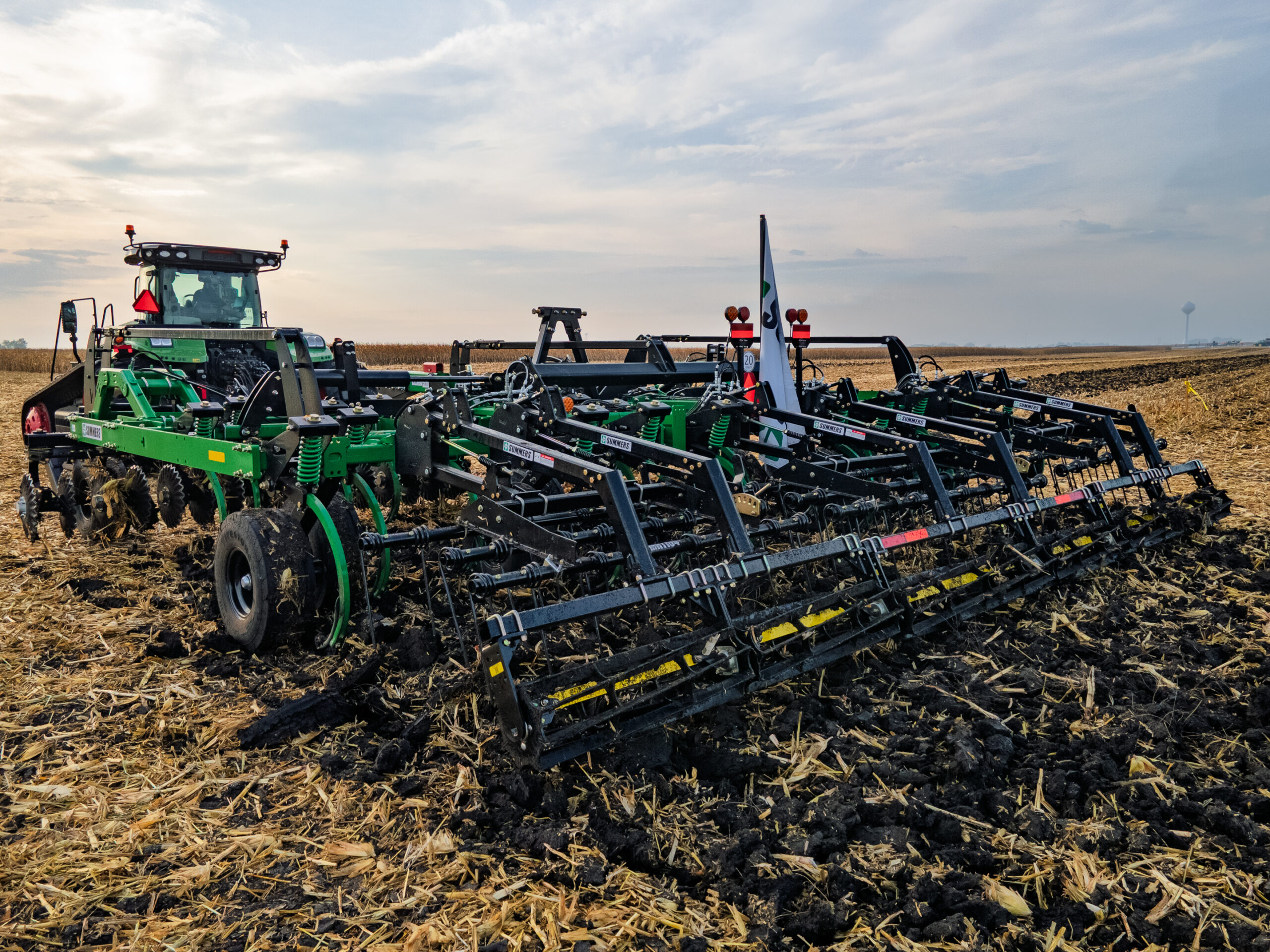

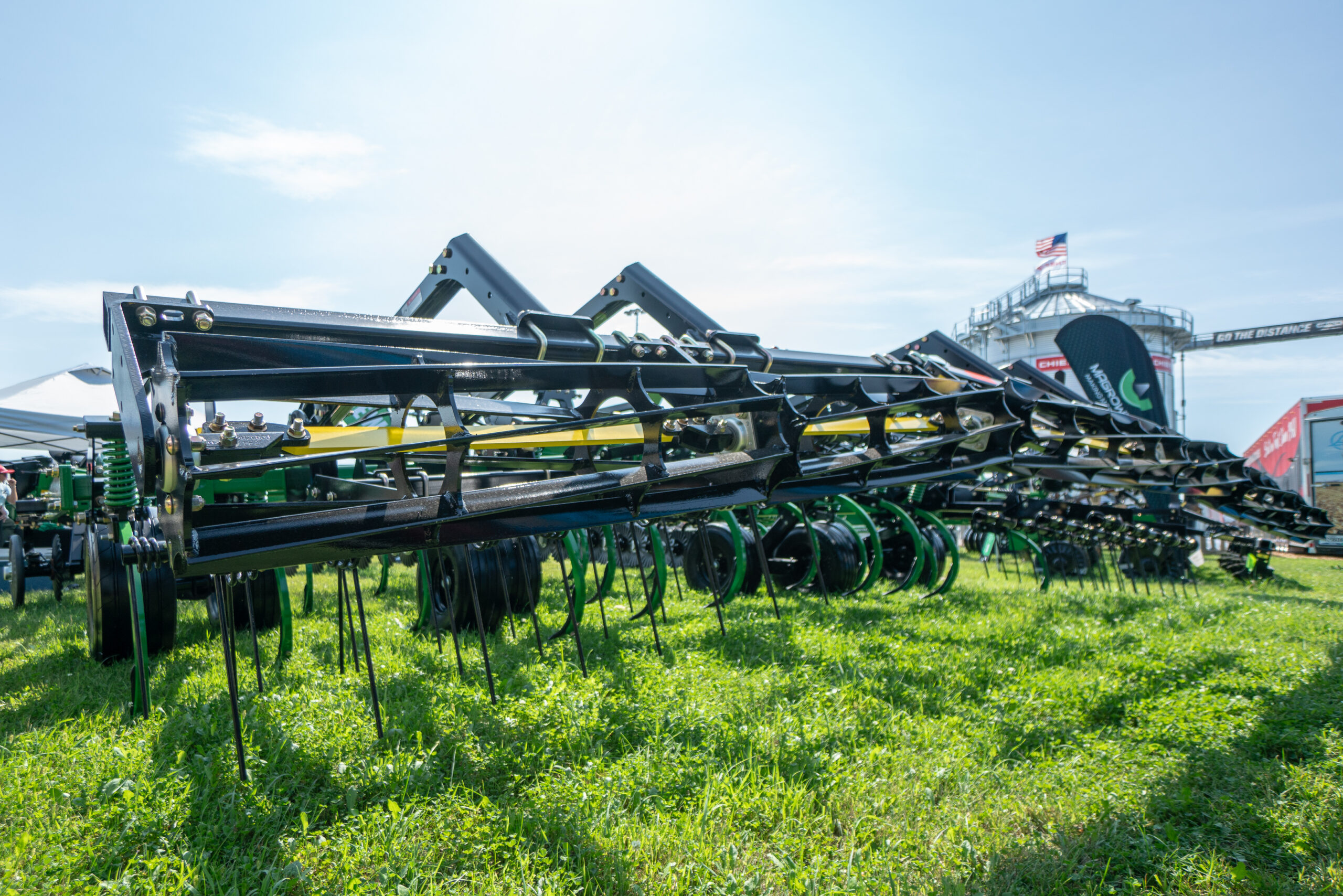

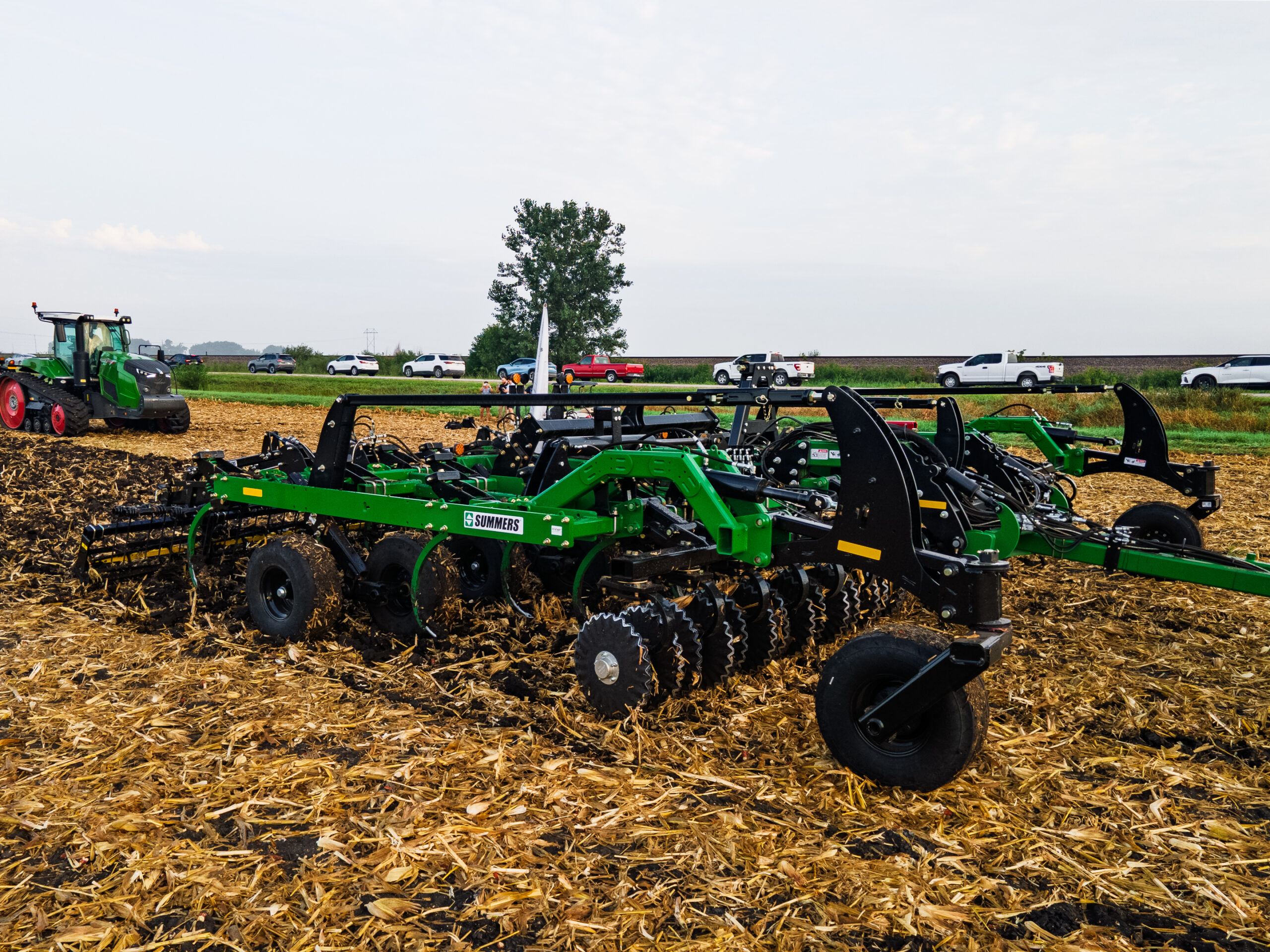

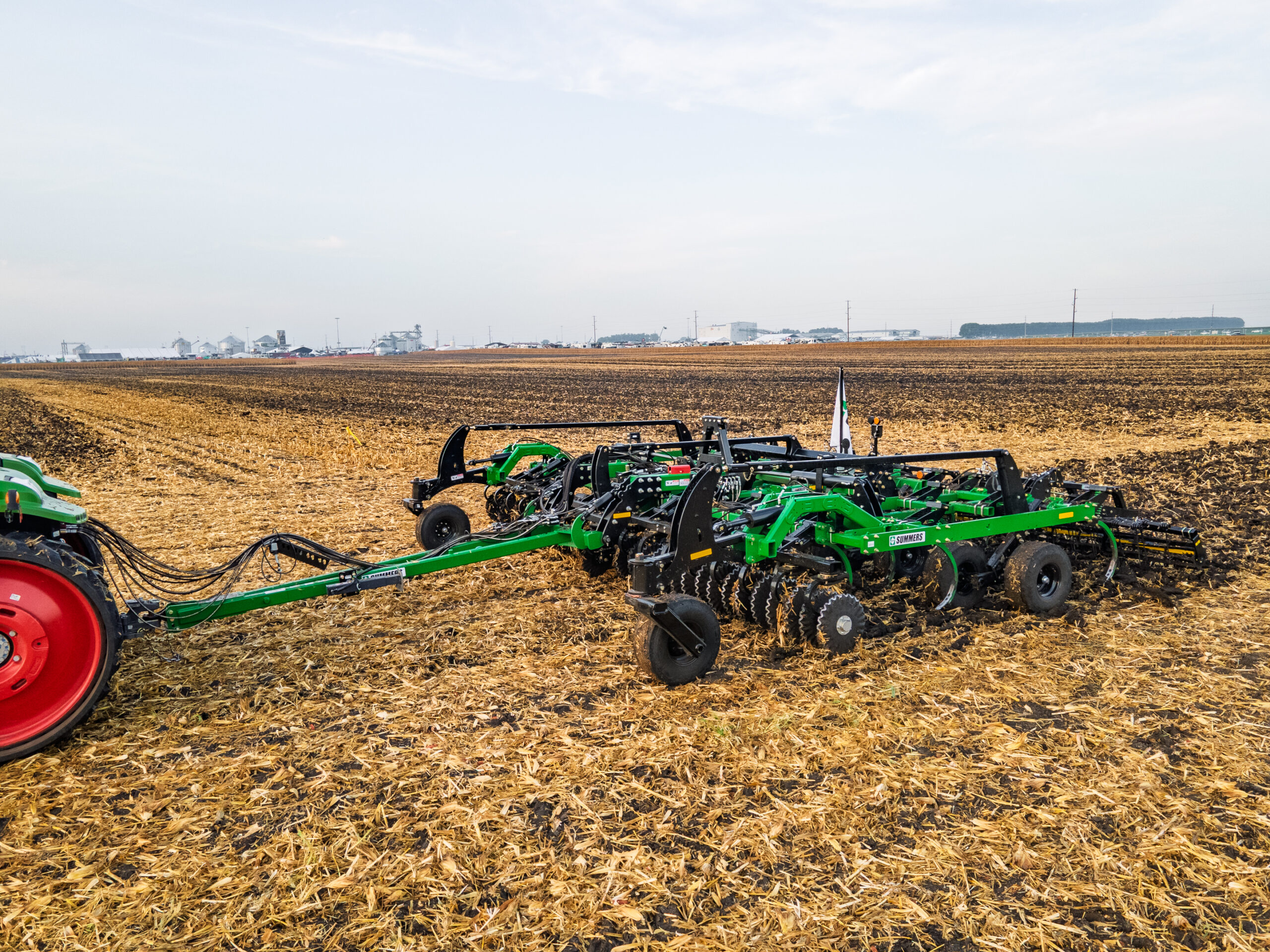

Elite Chisel

The Elite Chisel is the ultimate residue management tool, built on a single, heavy-duty frame that can be equipped with Disk, Samurai, or Coulter Blades. Designed for versatility, it delivers the ideal balance of residue sizing, soil mixing, and field preparation—offering unmatched adaptability and field performance.

Features & Benefits

Disk Blades

Disk Blades 22’’ Manual Adjustable (12 / 16/ 20 / 24 Degrees) The 22-inch smooth blades with standard or low concavity are individually hub-mounted on 20’’ spacing. They provide a high level of residue mixing in front of the chisel shanks and harrow sections.

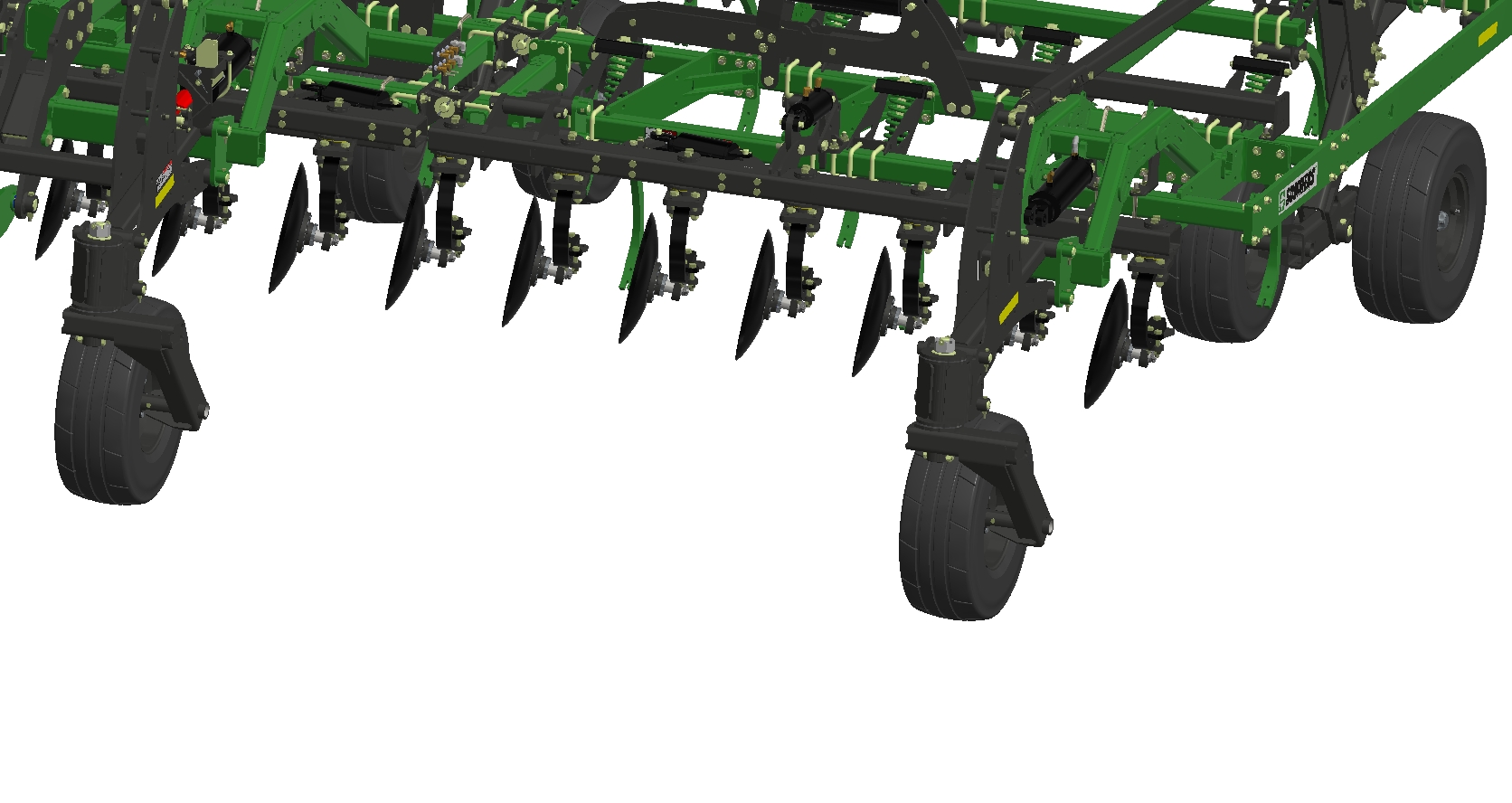

Disk Blades 22’’ Hydraulic Disk Blades (12-24 Degrees) The smooth blades with standard or low concavity are individually hub-mounted on 20’’ spacing. They provide a high level of residue mixing in front of the chisel shanks and harrow sections.

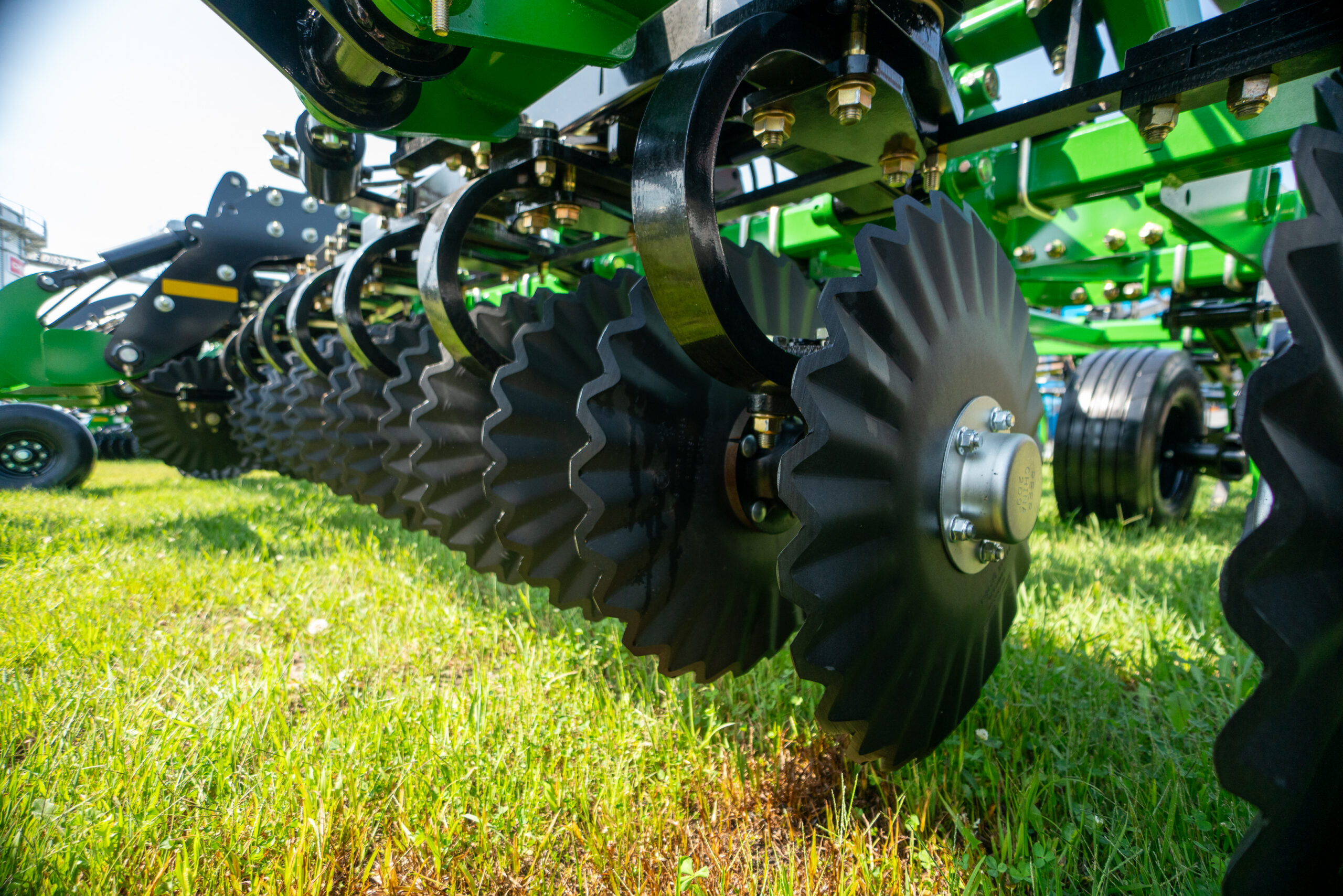

Samurai Blades

Samurai 22’’ Blades Hydraulic Samurai Blades (3-15 Degrees) Has dual hub-mounted blades at 10’’ spacing. They are slightly concave with a sawtooth design that excels at sizing residue and moving soil. The blades perform well in both wet soils and hard, dry conditions, and they are heat treated for extended life.

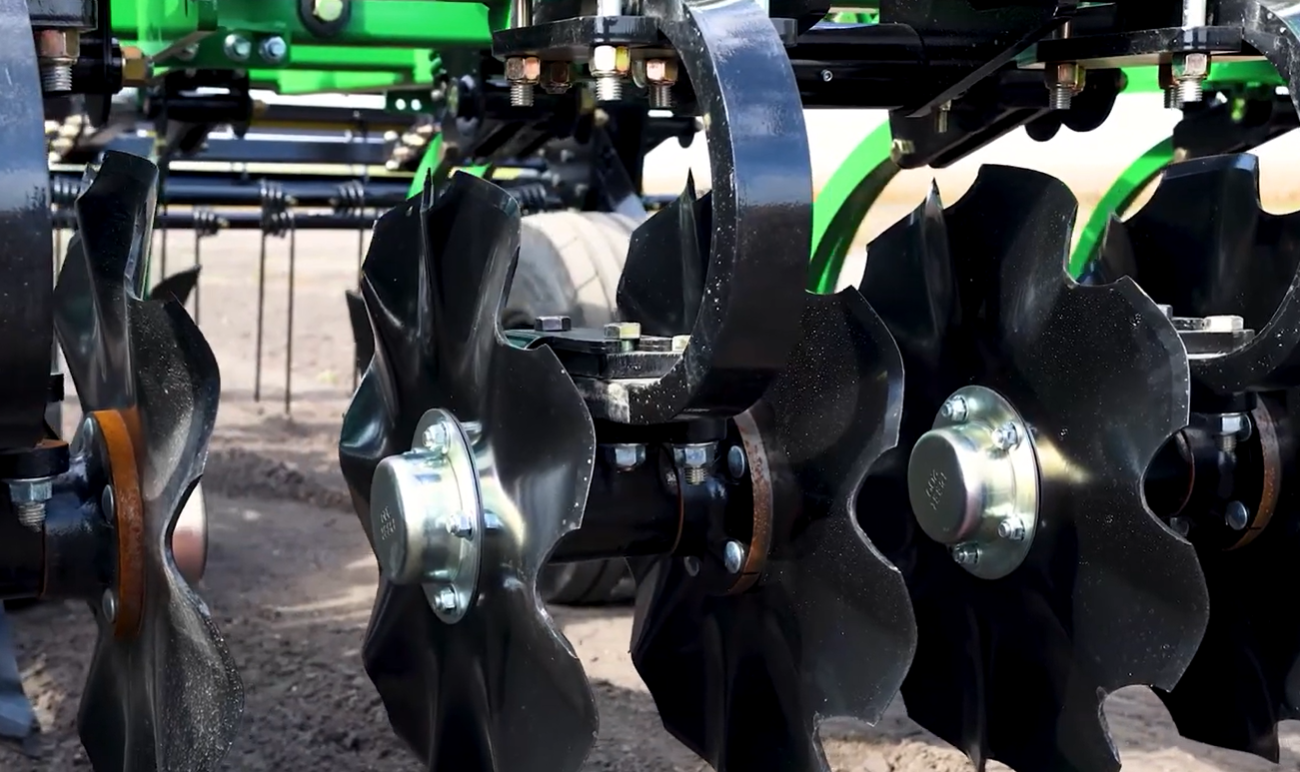

Coulter Blades

Coulter Smooth 22’’ or 8 Wave Notch 22’’ at 0 Degrees- Has dual hub-mounted blades at 10’’ spacing to match your tillage strategy

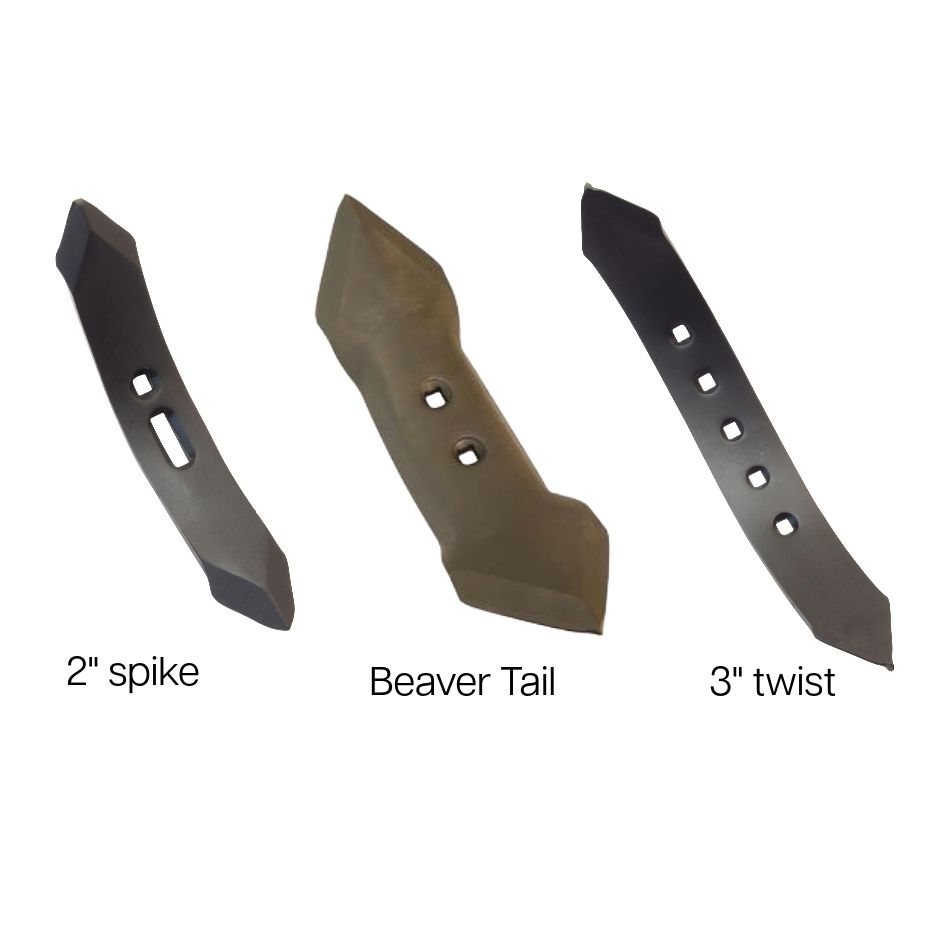

Point Options

Standard:
2’’ 1’’ x 2’’ x 17’

Optional:
¾’’ x 4’’ x 22’’ Twisted spike
Beaver Tail

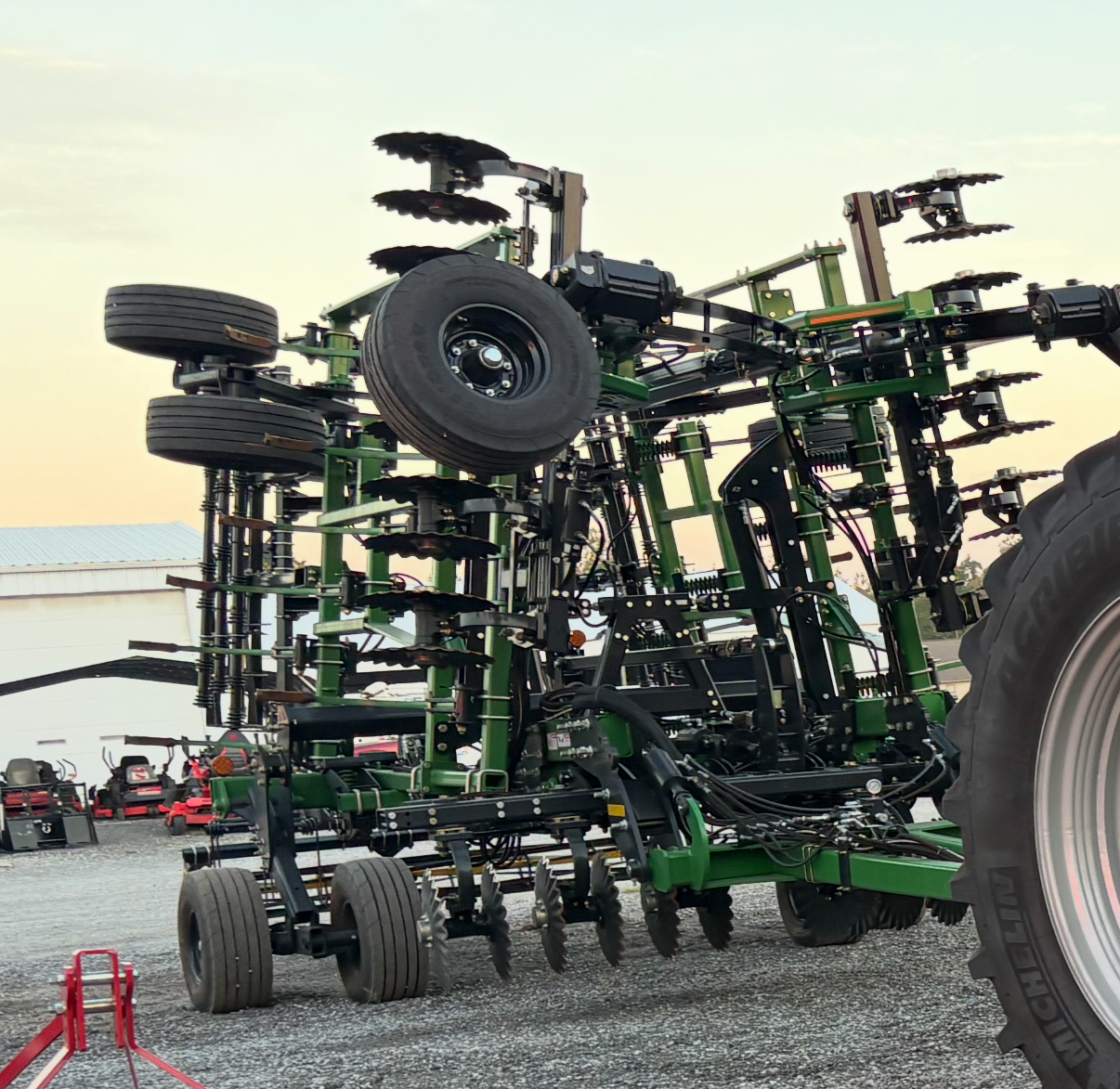

Narrow Transport

26’ & 30’ have a 13’2’’ road transport.

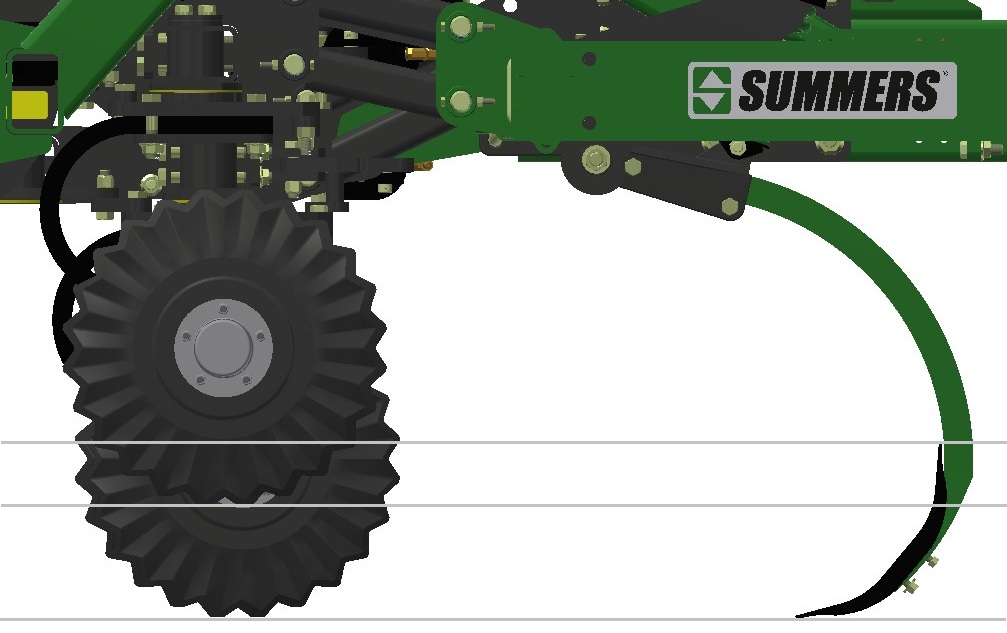

Adjustable Blade Depth

Adjust your tillage aggressiveness on the go by hydraulically raising or lowering the front coulter gangs from the cab. This feature allows blade depth to be adjusted independently of the chisel shanks.

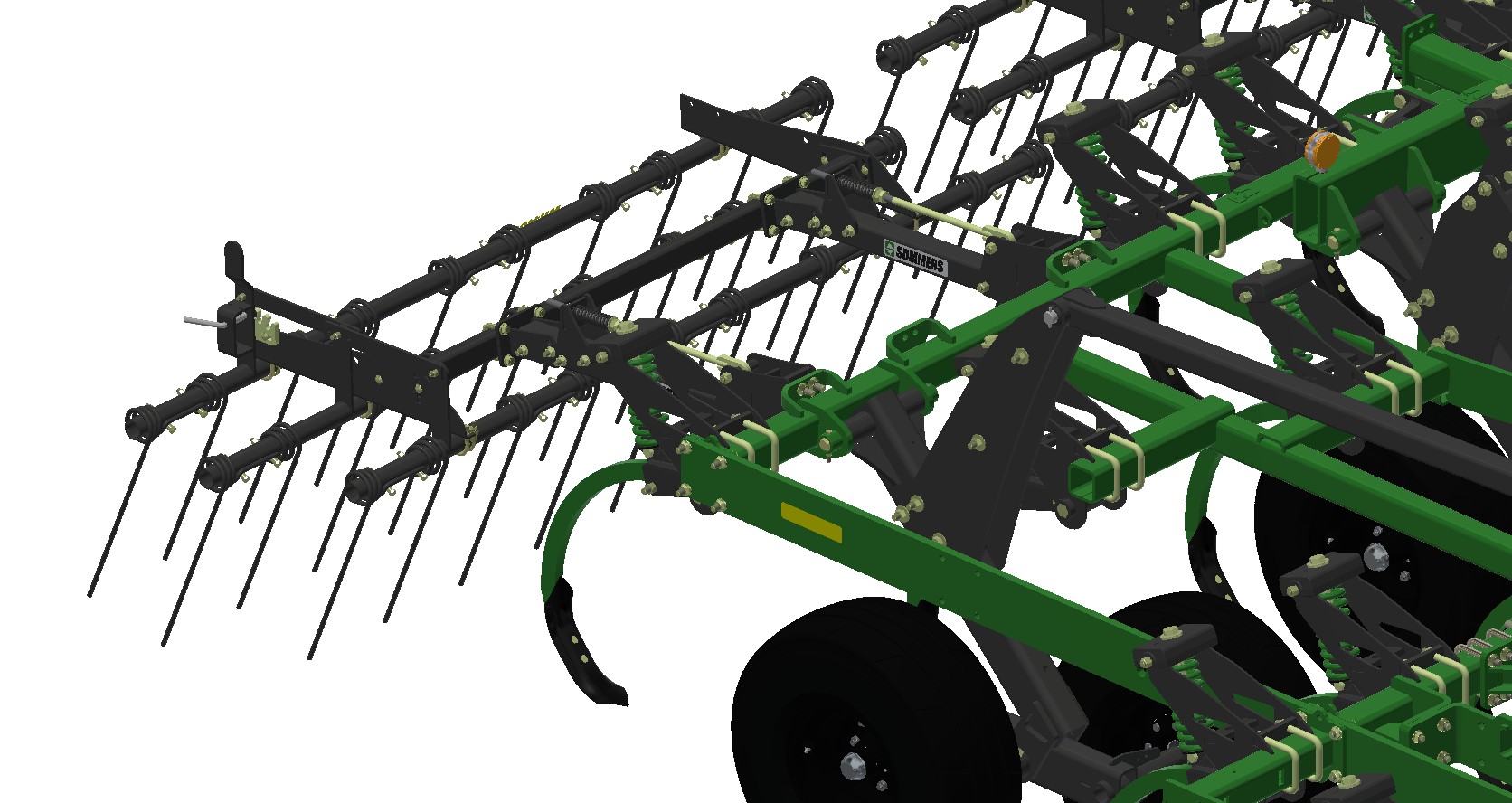

Chisel Shanks

With a 6-inch pivot width, each chisel shank is formed “on edge” to reduce draft and improve residue flow. The shanks are spaced on 12-inch centers and offer more than 34 inches of frame-to-sweep tip clearance. They have a maximum tillage depth of 12 inches and a 15-inch trip travel.

Shank Spacing

Can be outfitted with 12’’ or 15’’ shank spacing.

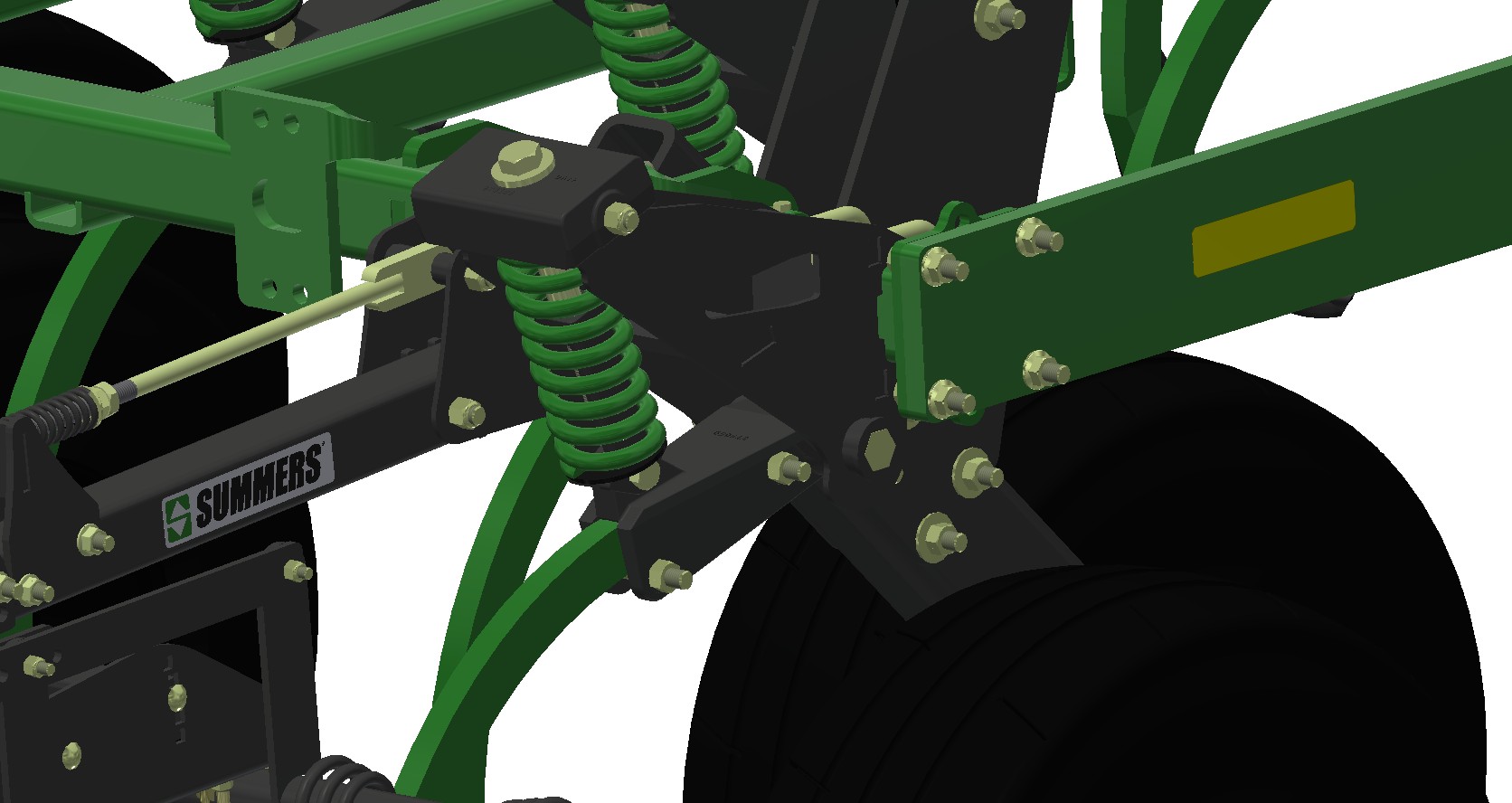

Aggressive Springs

The aggressive springs help the sweeps maintain preset depth levels for consistent results. They come with a standard trip pressure of 1,050 pounds to help minimize damage from large rocks or other obstructions.

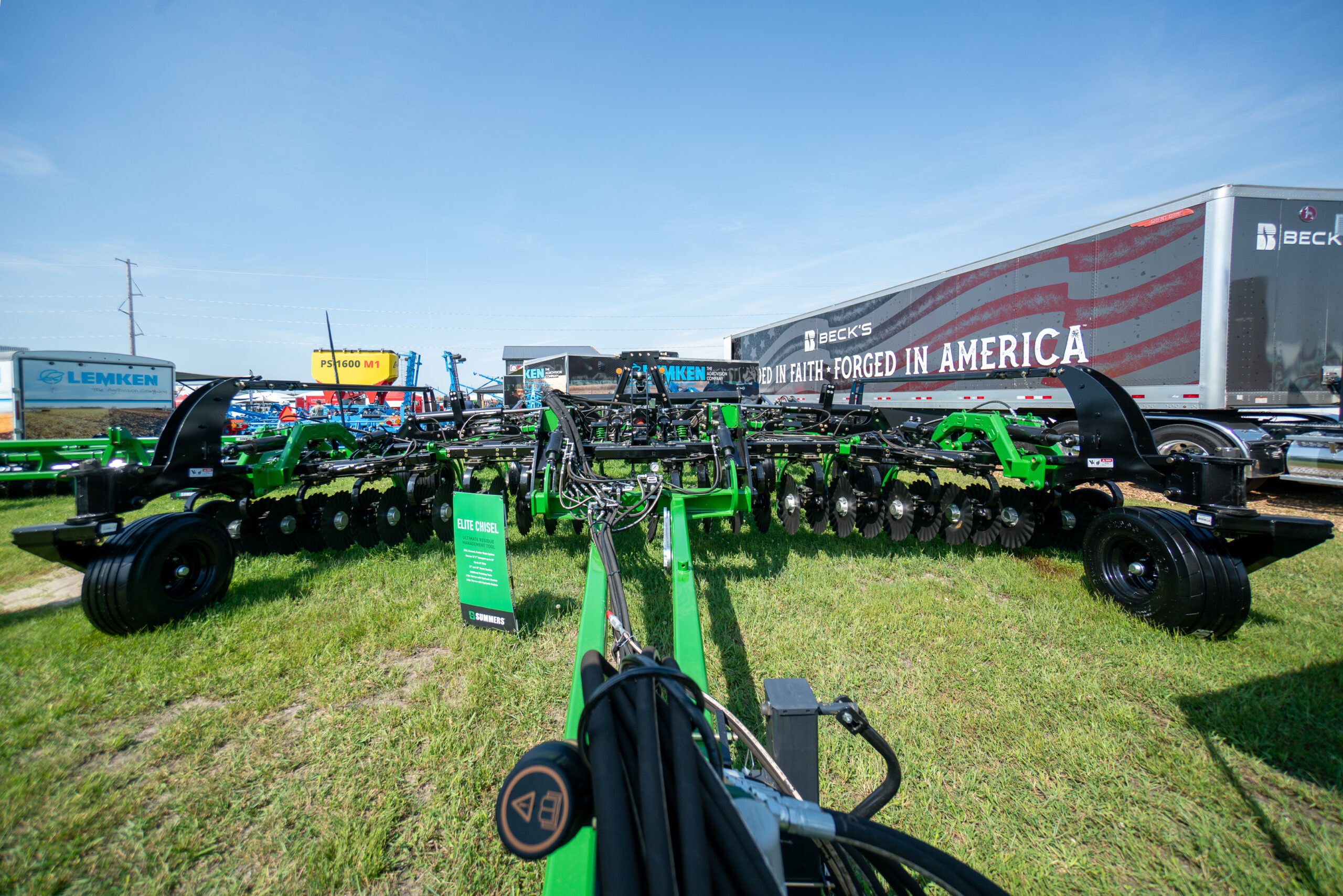

Hitch

26 & 30′ Elite Chisel comes with a hydraulic hitch, which is adjustable from the tractor cab. 34 & 38’ and up comes standard with a floating hitch.

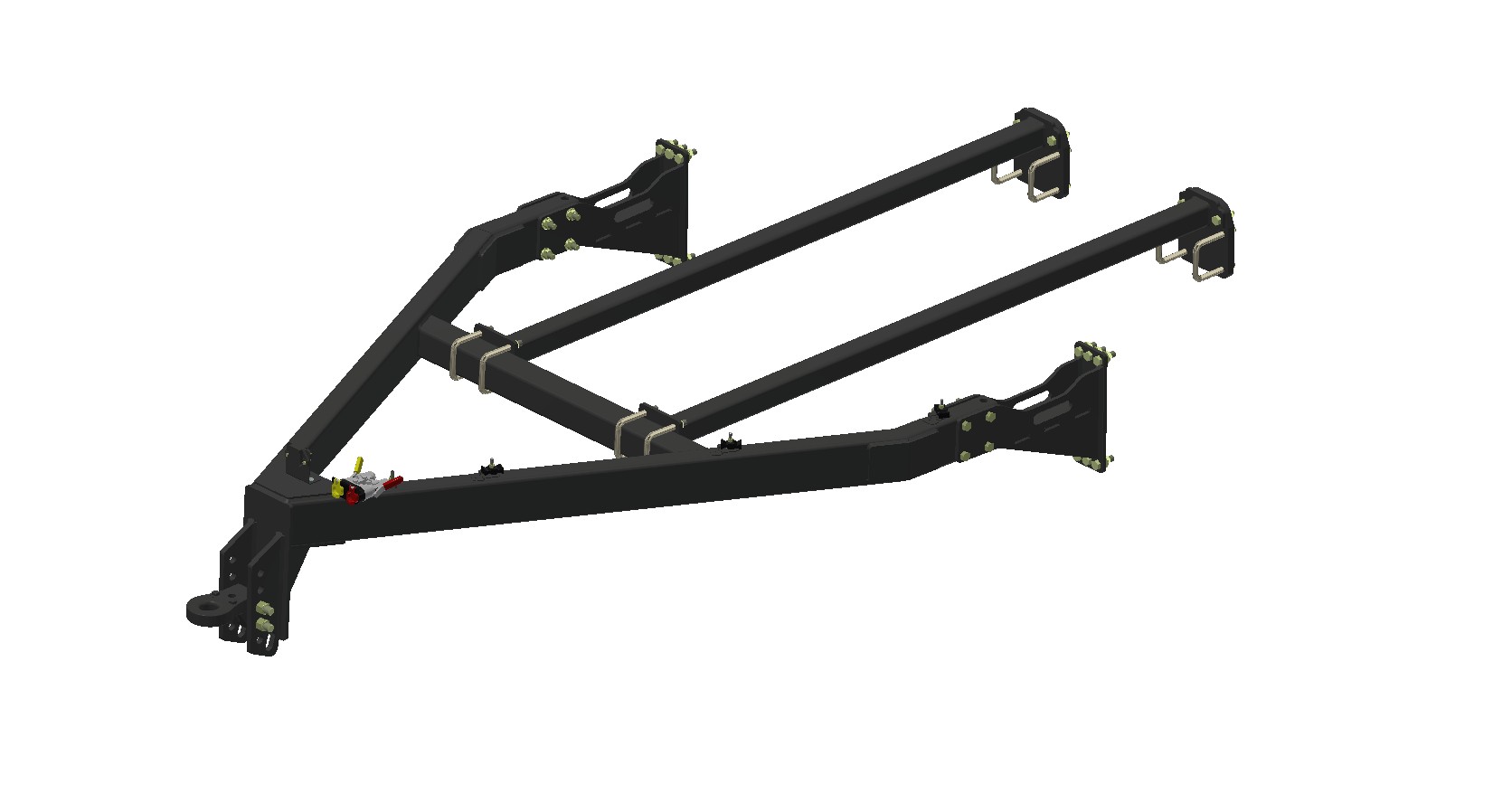

Rear Hitch

The long-reach rear hitch for auxiliary trailering features an extendable swinging tongue for easy hook-up.

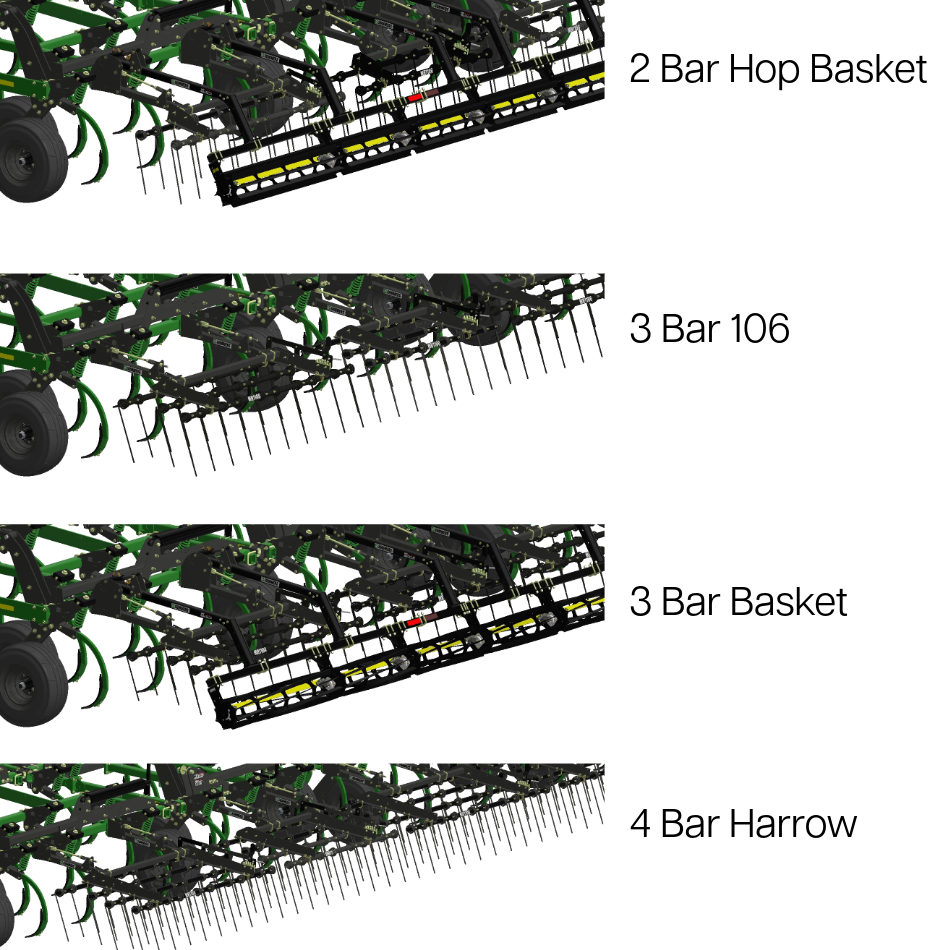

Mounted attachments

2 Bar Hydraulic Chopping Basket – The 2-bar mounted harrows can be adjusted for deep or shallow penetration. They feature a heavy, yet flexible design for floating over rocks and deep ditches. While the Rolling Chopper chops residue, breaks up clumps and levels the soil.

3 Bar Hydraulic Chopping Basket – The 3-bar mounted harrows can be adjusted for deep or shallow penetration. They feature a heavy, yet flexible design for floating over rocks and deep ditches, while the Rolling Baskets with Summers patented internal mud scraper breaks up clumps, leveling the soil.

4 Bar Harrow– The 4-bar mounted harrows can be adjusted for deep or shallow penetration. They feature a heavy, yet flexible design for floating over rocks and deep ditches, while the Rolling Baskets with Summers patented internal mud scraper breaks up clumps, leveling the soil.

Options

Paint Color

With any custom Summers equipment order, choose between green or red, whichever best fits your farming operation.

View Paint Colors

Specifications

26

Transport Width

13' 2"

Transport Height

11'

Length (max)

38' 8"

Total Shanks

Missing
