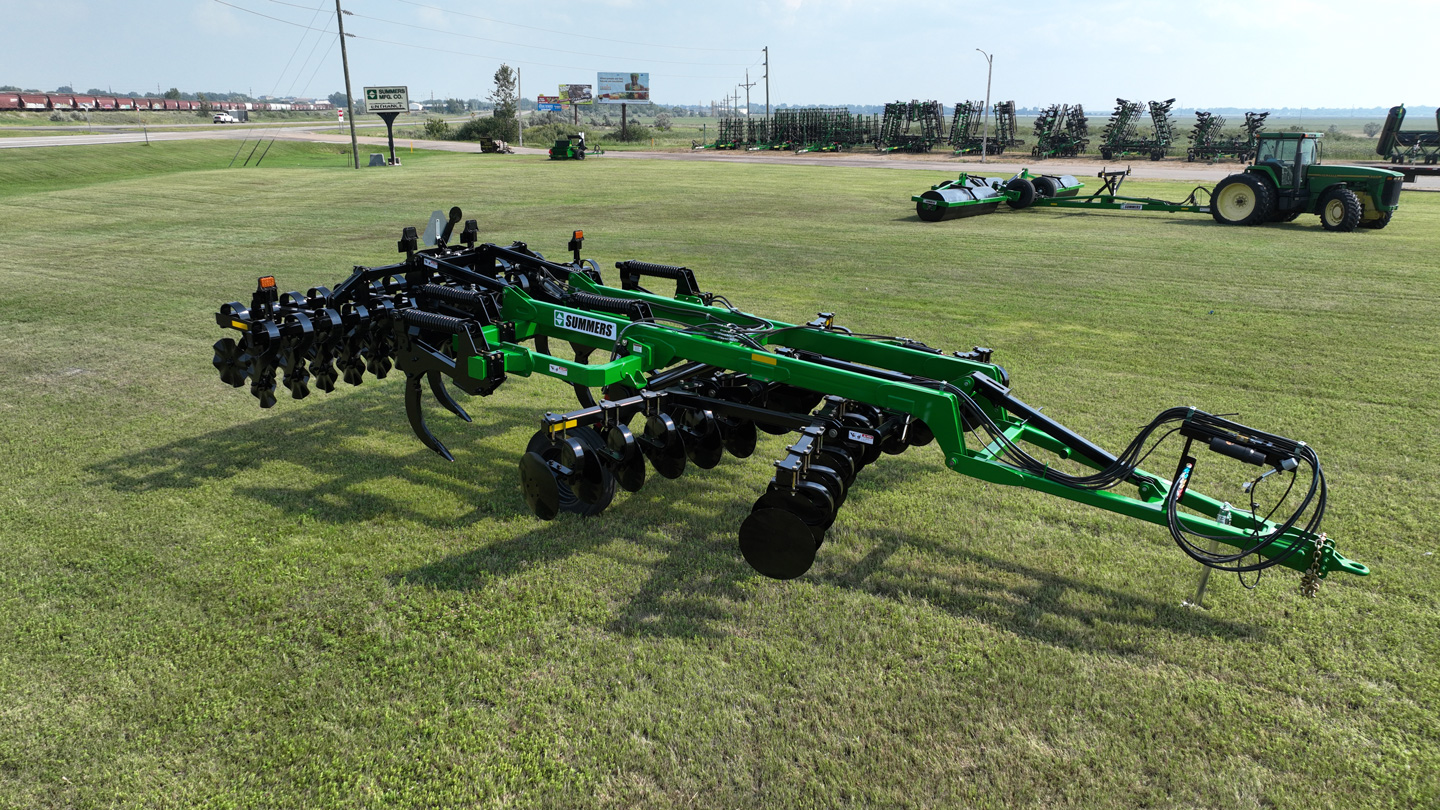

Precision Deep Tillage with Unmatched Versatility

The Summers disk ripper is engineered to deliver the performance modern farmers demand. Available in four configurations—5, 7, 9, and 11 shank models—this implement adapts to operations of any scale while maintaining exceptional consistency across your entire field.

Built with 3,200 pounds of trip force per shank, this disk ripper powers through the toughest ground conditions. The innovative hydraulically adjustable coulter finishing tool can be raised, set in float, or positioned for down pressure, giving you total control over your final seedbed. From deep ripping with final finishing in a single pass, maximize productivity while minimizing fuel consumption.

Features & Benefits

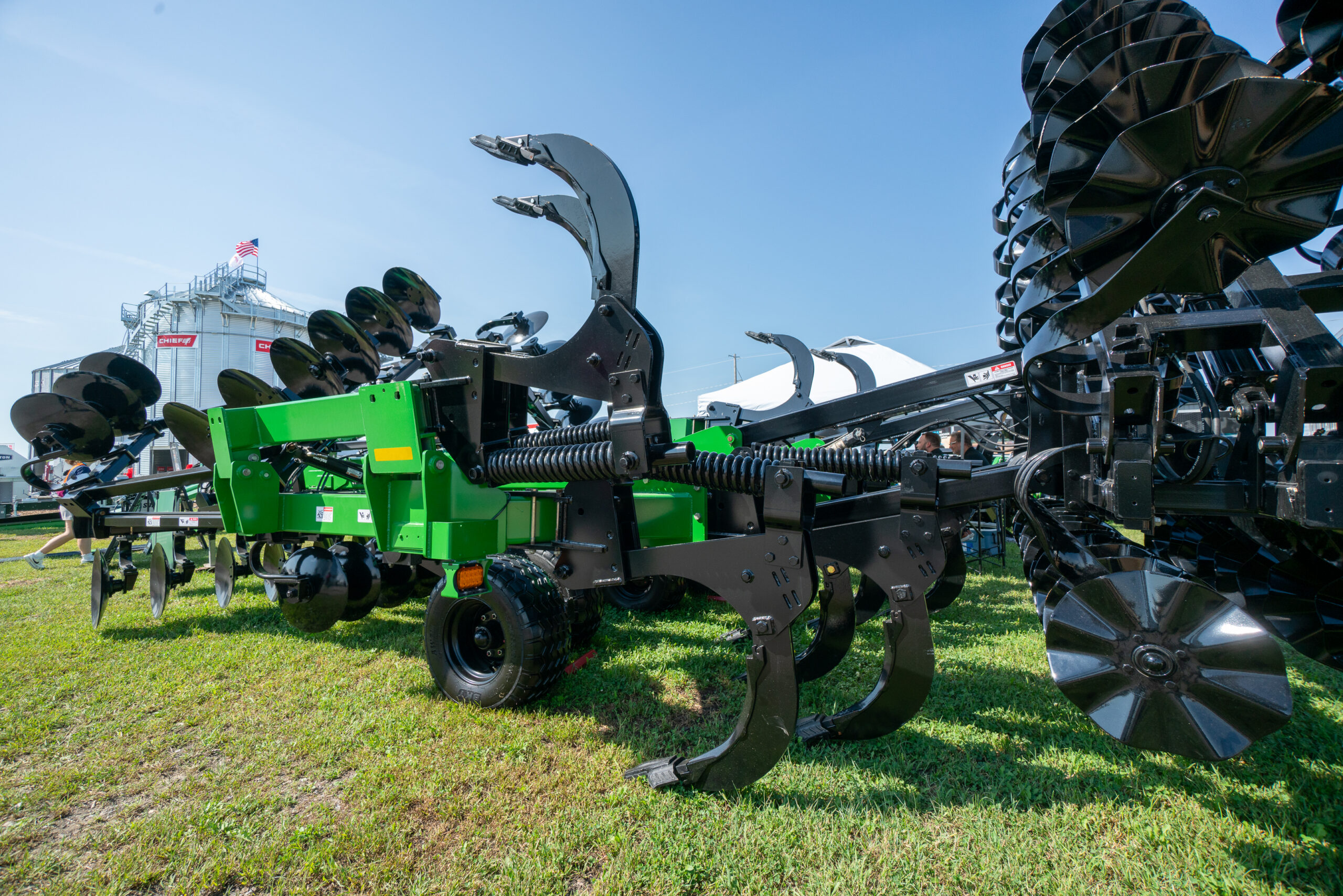

disk ripper shank options

Shank Options

  • 5 shank 30’’ spacing
  • 7 shank 24’’ spacing
  • 9 shank 24’’ spacing
  • 11 shank 24’’ spacing

All shanks have 3,200 pounds of trip force

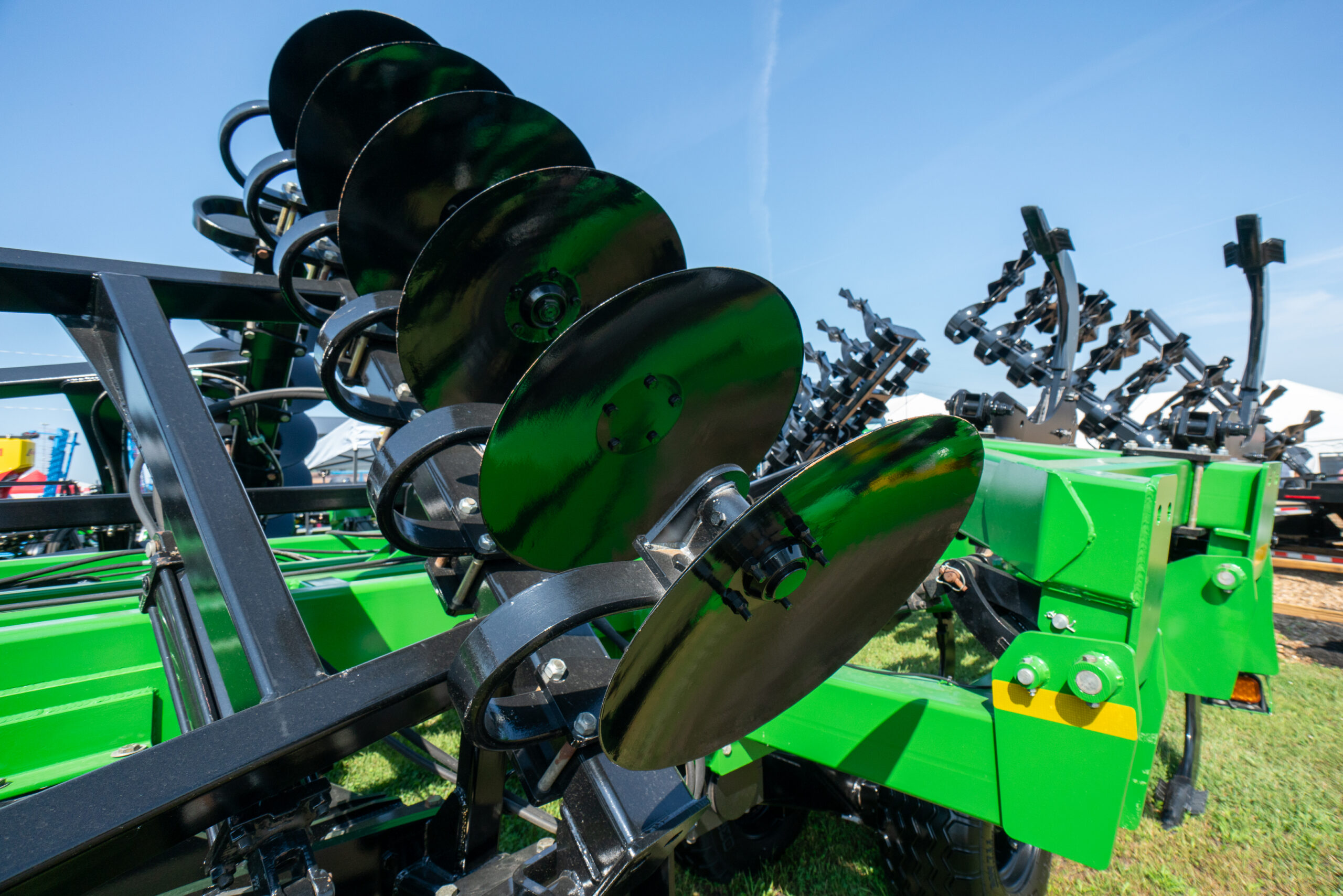

Ripper blades

Disk Blades

15’’ 7.5’’ effective spaced disk blades mounted on gang or individually mounted

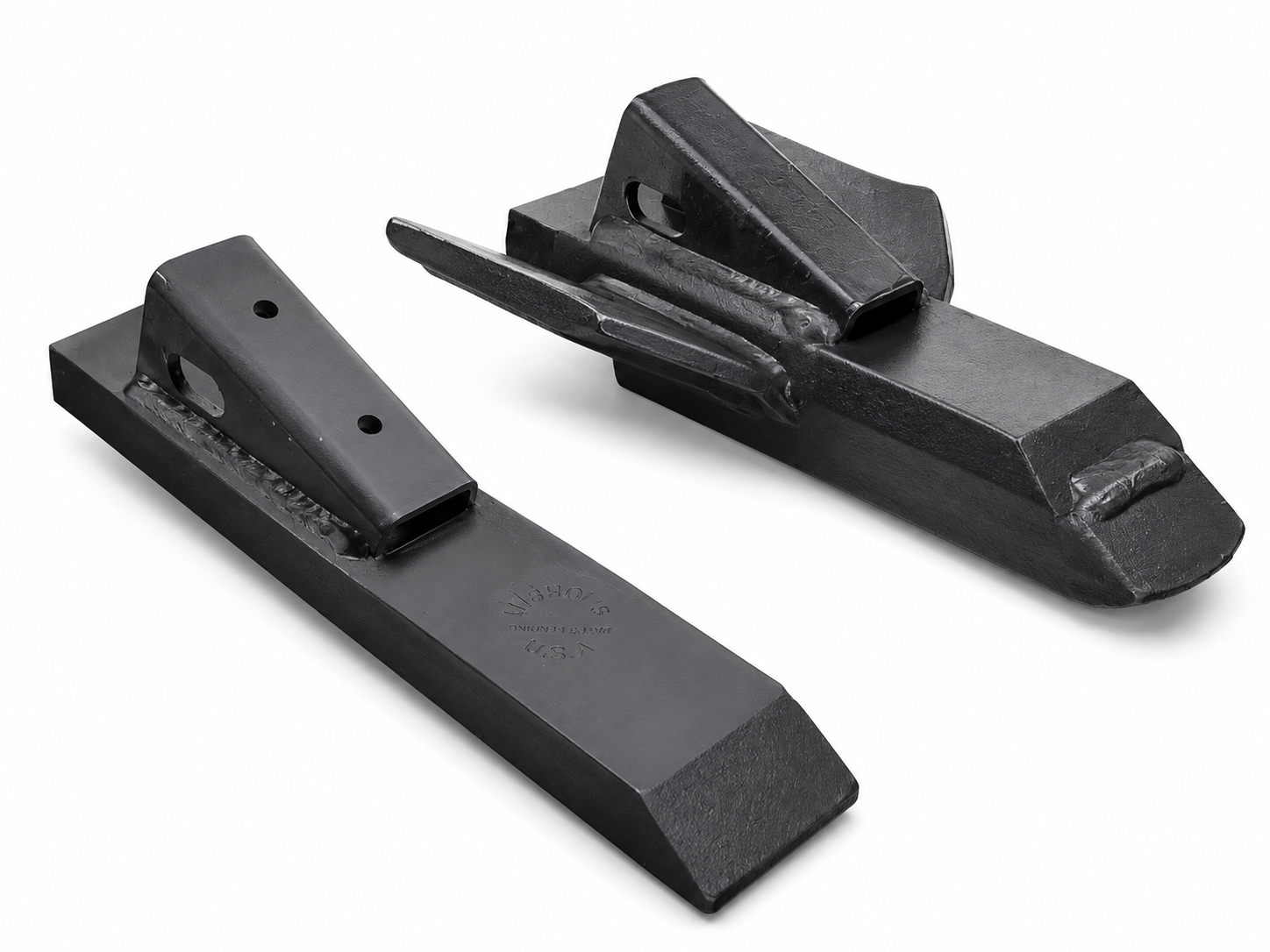

point options

Point Options

Standard 1-½’’ x 2’’ x 14’’

Option- 1-½’’ x 2-¾’’ x 14’’ Wing

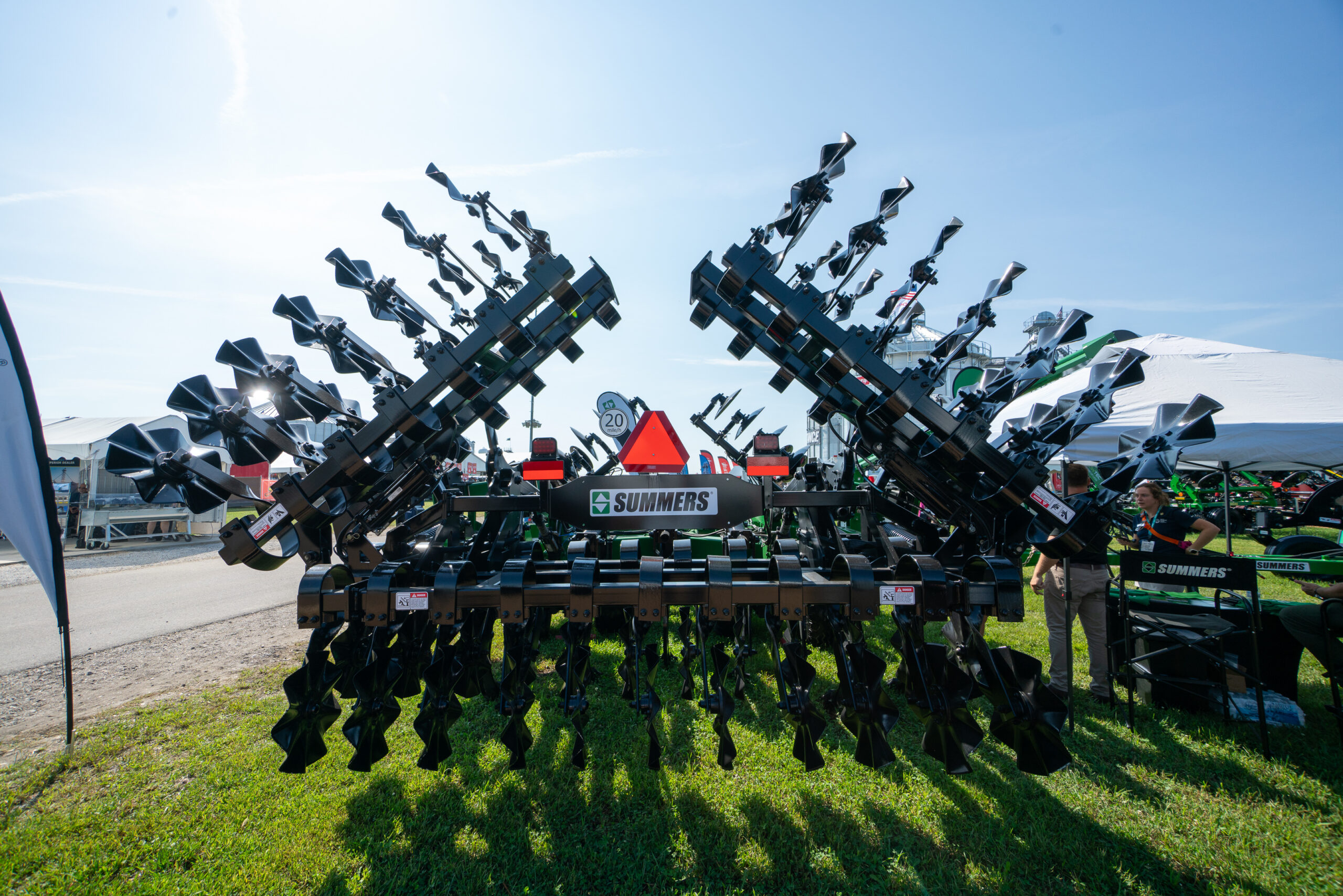

Ripper rear attachment

Rear Attachment

20’’ diameter – 12″ spaced individual coulter blades on two ranks for 6″ effective coverage, this rear finishing tool is built for simplicity and performance. Hydraulic adjustment allows it to be locked in for added downforce or run in float, delivering the smooth, consistent field finish you want.

Options

Paint Color

With any custom Summers equipment order, choose between green or red, whichever best fits your farming operation.

Specifications

5 shank

Front Blade Configuration
Independent
Estimated Weight
12,676 lbs.

TRANSPORT DIMENSIONS

Hitch Tongue Weight (lbs)
650
Length
30'-3"
Working Width
14'
Transport Width
15'
Height with soil finisher arms level
6'-8"
Outer wheel track width
6'10"
Wheels
SINGLE
285/70R19.5 ON 8 BOLT HUB
tractor HP required 50-60 hp per shank
250-300
operating speed
5-7 MPH recommended

BLADES

SAMURAI
22" FOR INDEPENDENT AND GANG OPTIONS
SMOOTH CONCAVITY
24" WITH 22" OUTER BLADES FOR INDEPENDENT AND GANG
BLADE SPACING INDEPENDENT
15"
BLADE SPACING GANG
15"
SHANK PROTECTION
AUTO RESET WITH 5/8" SHANK SHEAR BOLT
SHANK SPACING
30"
SHANK TRIP FORCE
3200 LBS
SHANK WIDTH
1-1/4"
SHANK WEAR SHIN
STANDARD

SHANK POINTS

2-1/2"
OPTION
7" CHROME WING
OPTION
SOIL FINISHER
STANDARD
BLADE SPACING
6" EFFECTIVE SPACING
BLADE DIAMETER
20"
BLADE ANGLE
5 DEGREES
SOIL FINISHER HYDRAULIC DOWN PRESSURE
STANDARD

MACHINE LEVELING OPTIONS

TURNBUCKLE
OPTION
HYDRAULIC HITCH
OPTION
DEPTH CONTROL
SINGLE POINT DEPTH CONTROL

7 shank

Front Blade Configuration
INDEPENDENT
APPROX WEIGHT: 21,292 LBS

GANG
APPROX WEIGHT: 22,112 LBS

TRANSPORT DIMENSIONS

Hitch Tongue Weight (lbs)
1180
Length
35'-8"
Working Width
17'
Transport Width
17'-7"
Height with soil finisher arms level
7'-1"
Outer wheel track width
11'1"
Wheels
WALKING TANDEM
VF 385/65R22.5 ON 10 BOLT HUB
tractor HP required 50-60 hp per shank
350-420
operating speed
5-7 MPH recommended

BLADES

SAMURAI
22" FOR INDEPENDENT AND GANG OPTIONS
SMOOTH CONCAVITY
24" WITH 22" OUTER BLADES FOR INDEPENDENT AND GANG
BLADE SPACING INDEPENDENT
15"
BLADE SPACING GANG
15"
SHANK PROTECTION
AUTO RESET WITH 5/8" SHANK SHEAR BOLT
SHANK SPACING
24"
SHANK TRIP FORCE
3200 LBS
SHANK WIDTH
1-1/4"
SHANK WEAR SHIN
STANDARD

SHANK POINTS

2-1/2"
OPTION
7" CHROME WING
OPTION
SOIL FINISHER
STANDARD
BLADE SPACING
6" EFFECTIVE SPACING
BLADE DIAMETER
20"
BLADE ANGLE
5 DEGREES
SOIL FINISHER HYDRAULIC DOWN PRESSURE
STANDARD

MACHINE LEVELING OPTIONS

TURNBUCKLE
OPTION
HYDRAULIC HITCH
OPTION
DEPTH CONTROL
SINGLE POINT DEPTH CONTROL

9 shank

Front Blade Configuration
INDEPENDENT
APPROX WEIGHT: 25,964 LBS

GANG
APPROX WEIGHT: 27,068 LBS

TRANSPORT DIMENSIONS

Hitch Tongue Weight (lbs)
1300
Length
35'-8"
Working Width
21'
Transport Width
16'-4"
Height with soil finisher arms level
9'-11"
Outer wheel track width
11'1"
Wheels
WALKING TANDEM
VF 385/65R22.5 ON 10 BOLT HUB
tractor HP required 50-60 hp per shank
450-540
operating speed
5-7 MPH recommended

BLADES

SAMURAI
22" FOR INDEPENDENT AND GANG OPTIONS
SMOOTH CONCAVITY
24" WITH 22" OUTER BLADES FOR INDEPENDENT AND GANG
BLADE SPACING INDEPENDENT
15"
BLADE SPACING GANG
15"
SHANK PROTECTION
AUTO RESET WITH 5/8" SHANK SHEAR BOLT
SHANK SPACING
24"
SHANK TRIP FORCE
3200 LBS
SHANK WIDTH
1-1/4"
SHANK WEAR SHIN
STANDARD

SHANK POINTS

2-1/2"
OPTION
7" CHROME WING
OPTION
SOIL FINISHER
STANDARD
BLADE SPACING
6" EFFECTIVE SPACING
BLADE DIAMETER
20"
BLADE ANGLE
5 DEGREES
SOIL FINISHER HYDRAULIC DOWN PRESSURE
STANDARD

MACHINE LEVELING OPTIONS

TURNBUCKLE
OPTION
HYDRAULIC HITCH
OPTION
DEPTH CONTROL
SINGLE POINT DEPTH CONTROL

11 shank

Front Blade Configuration
INDEPENDENT
APPROX WEIGHT: 28,552 LBS

GANG
APPROX WEIGHT: 30,016 LBS

TRANSPORT DIMENSIONS

Hitch Tongue Weight (lbs)
1300
Length
35'-8"
Working Width
25'
Transport Width
16'-4"
Height with soil finisher arms level
11'-1"
Outer wheel track width
11'1"
Wheels
WALKING TANDEM
VF 385/65R22.5 ON 10 BOLT HUB
tractor HP required 50-60 hp per shank
550-660
operating speed
5-7 MPH recommended

BLADES

SAMURAI
22" FOR INDEPENDENT AND GANG OPTIONS
SMOOTH CONCAVITY
24" WITH 22" OUTER BLADES FOR INDEPENDENT AND GANG
BLADE SPACING INDEPENDENT
15"
BLADE SPACING GANG
15"
SHANK PROTECTION
AUTO RESET WITH 5/8" SHANK SHEAR BOLT
SHANK SPACING
24"
SHANK TRIP FORCE
3200 LBS
SHANK WIDTH
1-1/4"
SHANK WEAR SHIN
STANDARD

SHANK POINTS

2-1/2"
OPTION
7" CHROME WING
OPTION
SOIL FINISHER
STANDARD
BLADE SPACING
6" EFFECTIVE SPACING
BLADE DIAMETER
20"
BLADE ANGLE
5 DEGREES
SOIL FINISHER HYDRAULIC DOWN PRESSURE
STANDARD

MACHINE LEVELING OPTIONS

TURNBUCKLE
OPTION
HYDRAULIC HITCH
OPTION
DEPTH CONTROL
SINGLE POINT DEPTH CONTROL
