Operations that can’t afford downtime don’t leave it to chance — they choose 10,000 bu/hr capacity, a two-year warranty, and support that doesn’t quit when the job gets hard. That’s not just a conveyor. That’s a Summers.

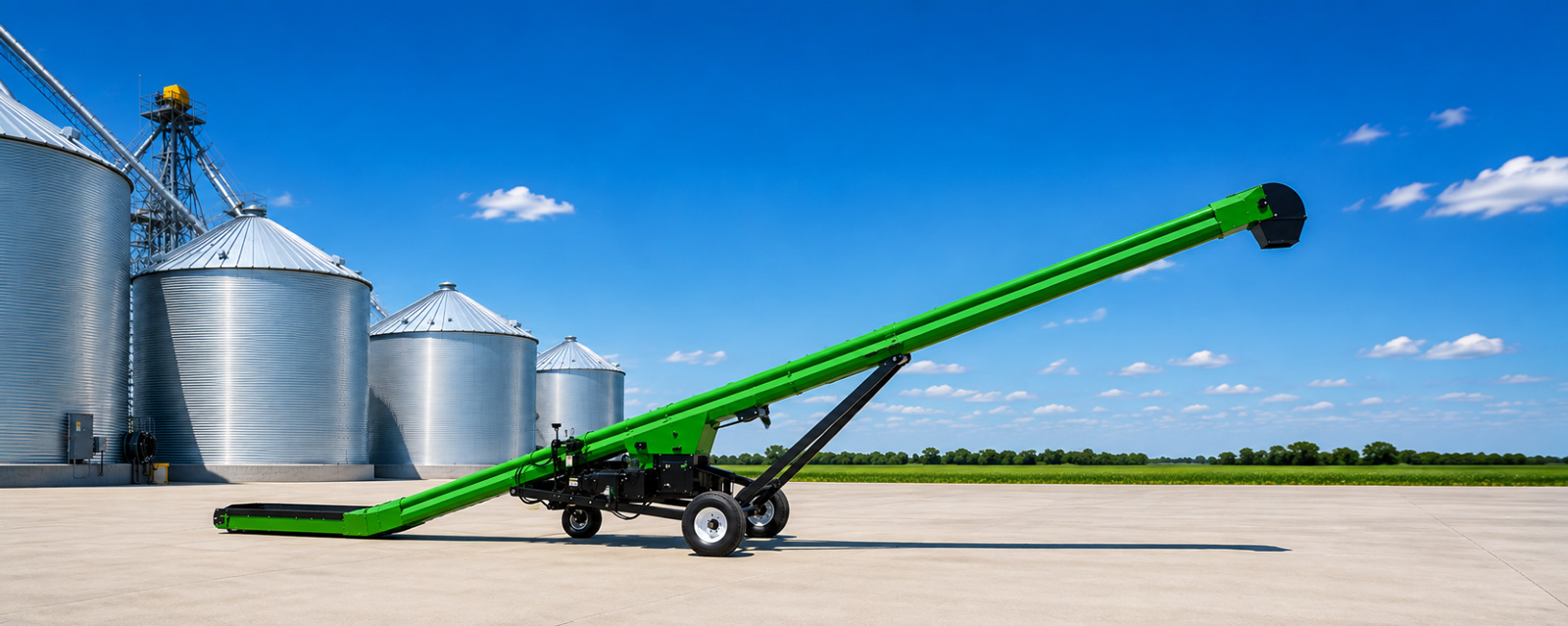

Field Belt
Features & Benefits
Engine & Drive System

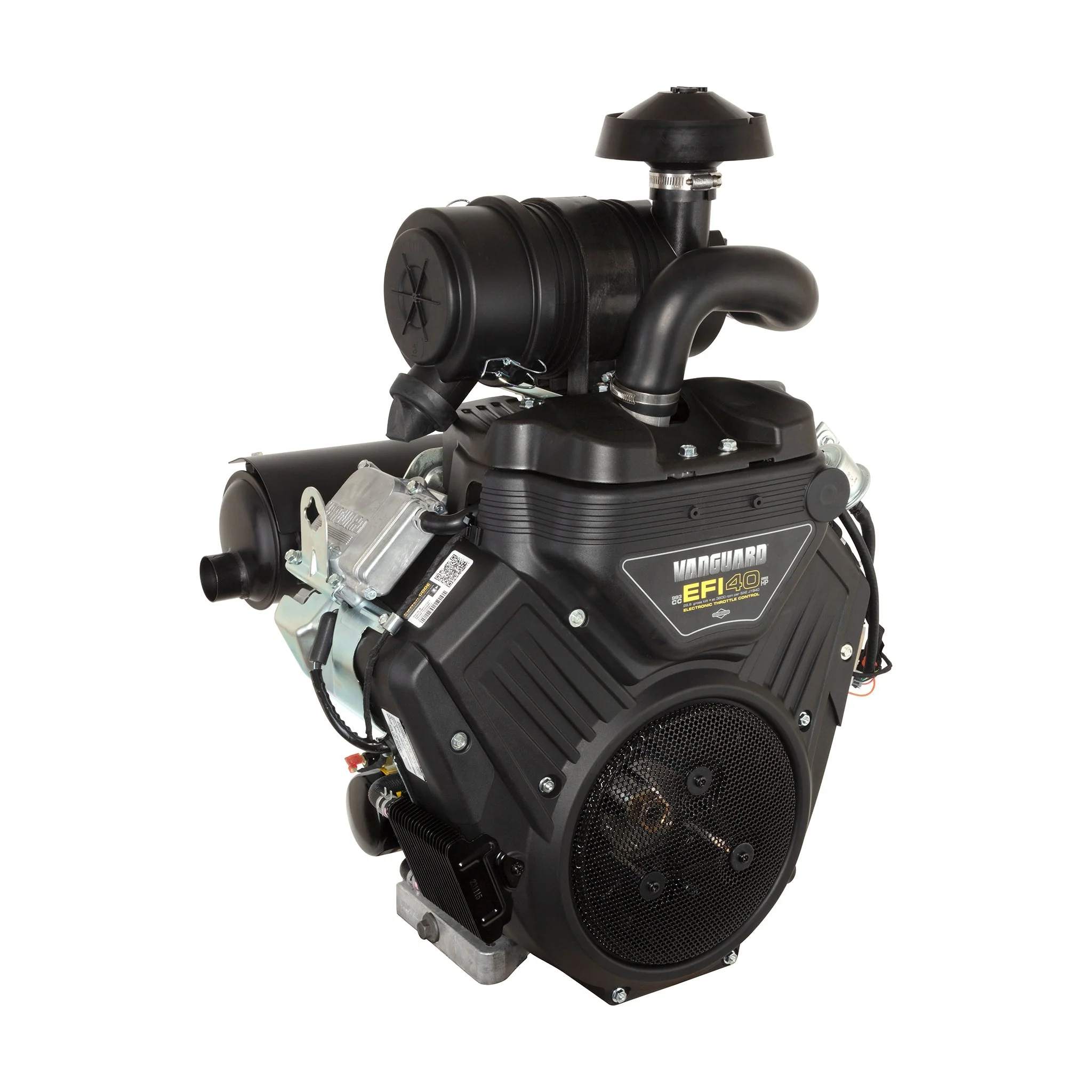

Vanguard 40HP EFI engine (Summers has certified techs)
Capacity
7,600 – 10,000 BPH
Electric Clutches
Two electric – One to engage the belt & One to engage the mover to ensure the hydraulic oil does not over heat
Mover
All Wheel Drive Mover Standard

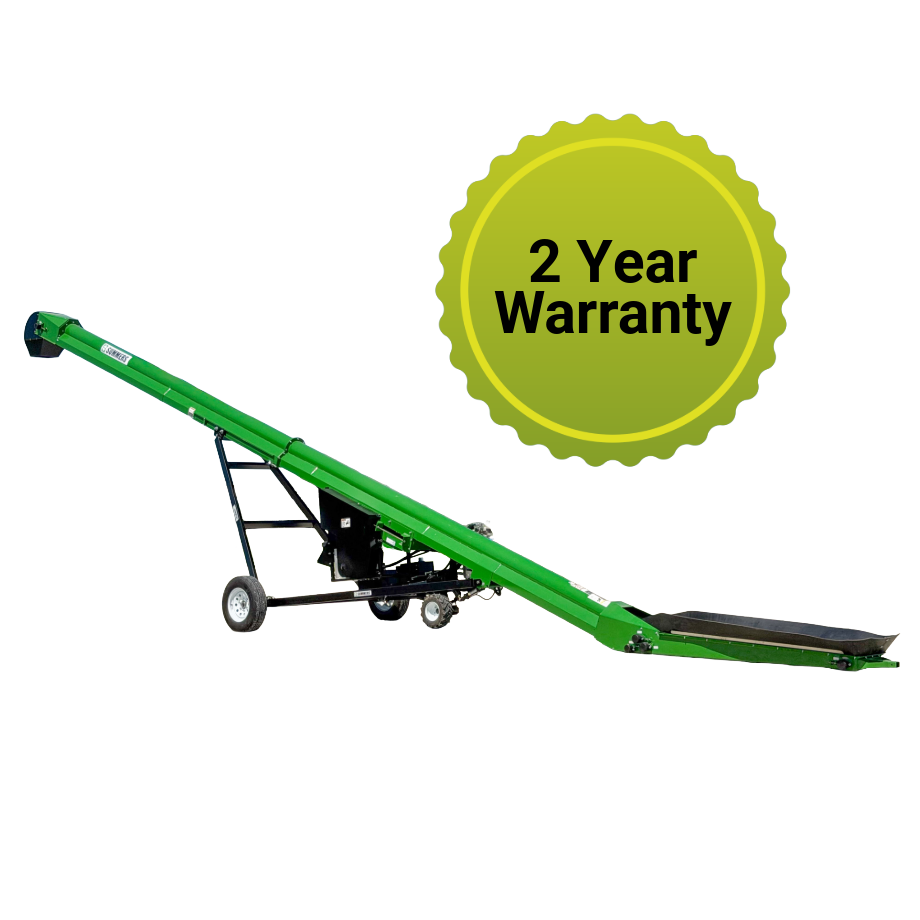

Warranty
2 Year Warranty
Specifications
1648 Fully Loaded
Conveyor length
48'
Belt Width
16"
Raised Height
23' 6"
Lowered Reach
20' 3"
Transport Height
12' 2"
Transport Length
51' 6"
Intake Reach *from dual mover wheel to end of conveyor
18' 2"
Wheel Track Width
8' 7"
Total Weight
3,300 lbs
Tube Diameter
10"
Tire Size
225/75R15 for main drive, 16x6.5x8 for steering

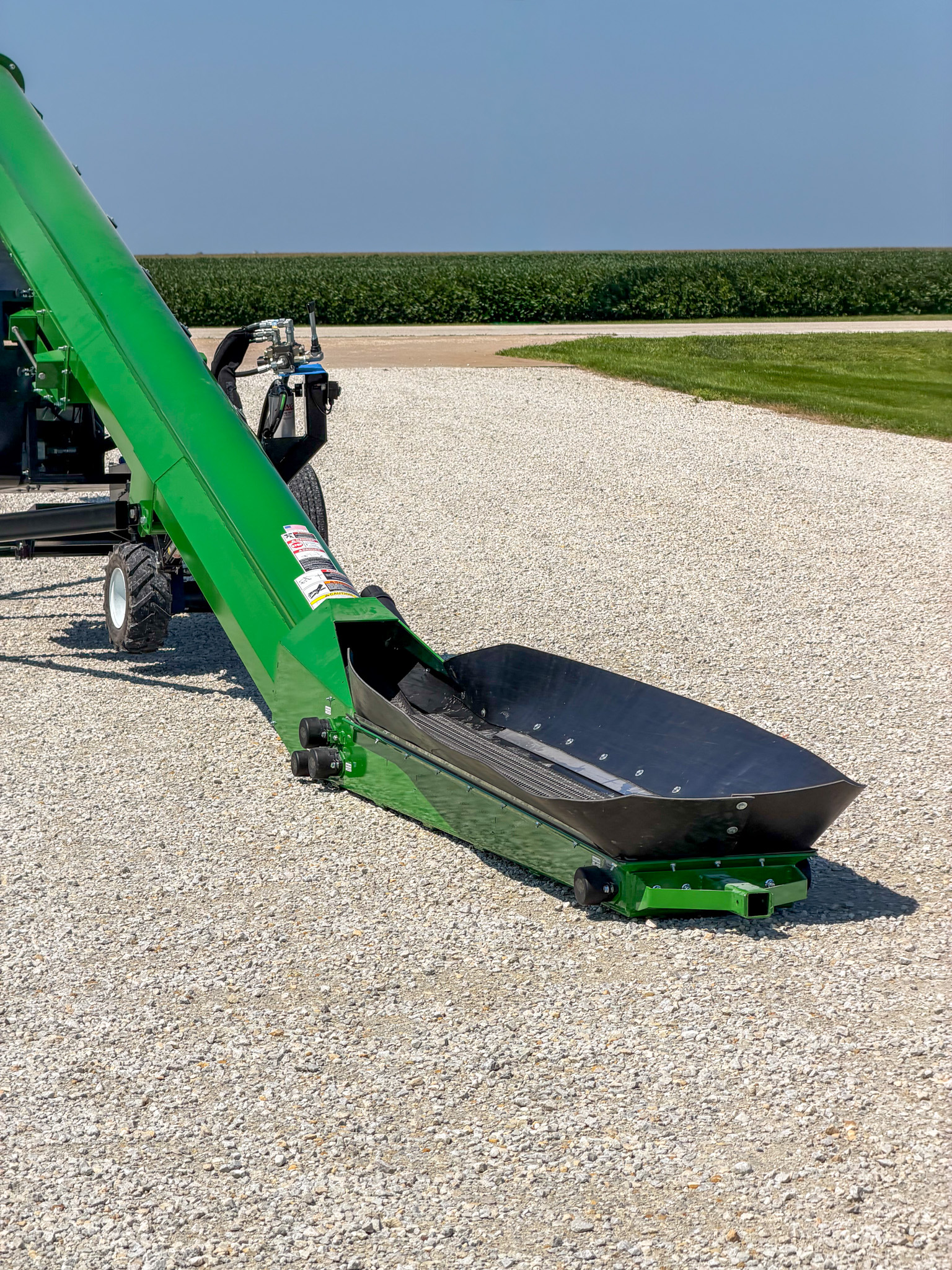

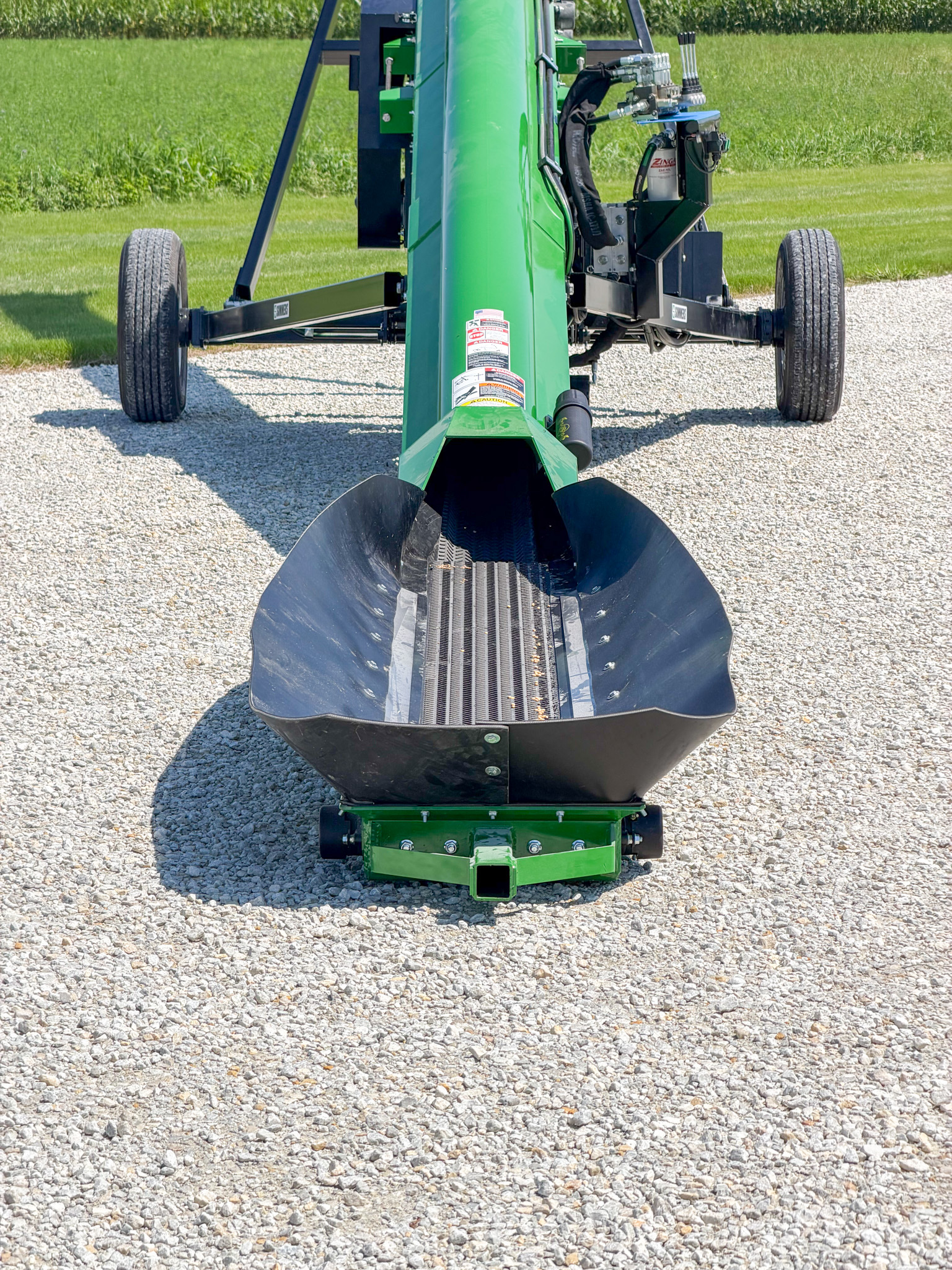

Hopper width & length
30" x 92"
Extended Hopper Height
7.5"
