The Harrow Packer 6350 (model SH6350) has an adjustable five-bar harrow with bent teeth to manage residue and level the soil profile. It also comes with rear coil attachments to pack the soil, preventing water loss and erosion.
Harrow Packer 6350
Features & Benefits

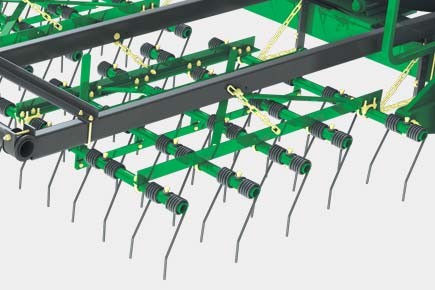

Bent Tooth Harrow
Featuring a 3/8″ x 14″ bent tooth design, the five-bar culti-harrow is designed to break up even the smallest dirt clumps. It levels and firms the soil profile while creating an ideal seedbed.

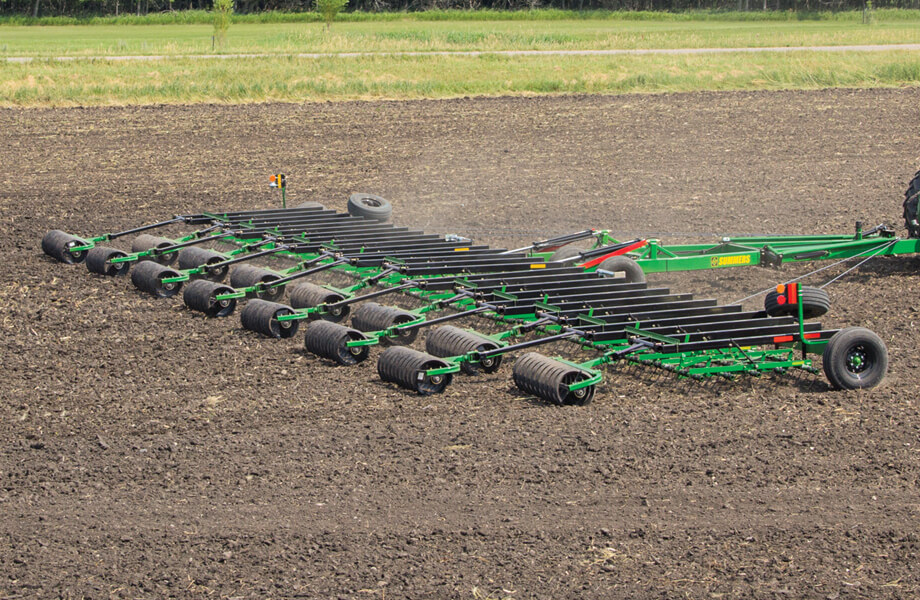

Packing Coils
The 1-3/4-inch coils apply 130 pounds of pressure per foot to size clumps and firm the seedbed without compacting the soil. They also leave a herringbone pattern in the soil that helps prevent erosion.
Heavy Duty Drawbar
Our 8-by-8-inch drawbar tube is bigger and stronger than anything else available. It provides maximum strength for pulling the unit.
Auto Fold
The unit’s 22-foot hitch is constructed of 4-inch-by-8-inch steel tubing and has a cable auto-folding design. The cables can be hydraulically released or locked from the tractor seat. A safety spring and manual valve are also included to prevent accidental release in the case of hydraulic pressure failure.

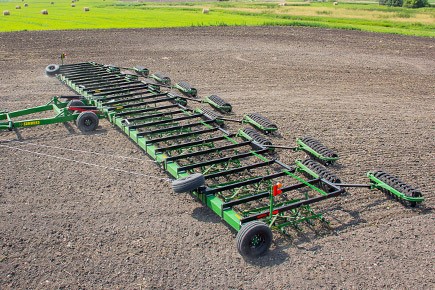

Box Frame
The heavy-duty box frame construction includes dual wheels on oscillating axles for use on uneven terrain.

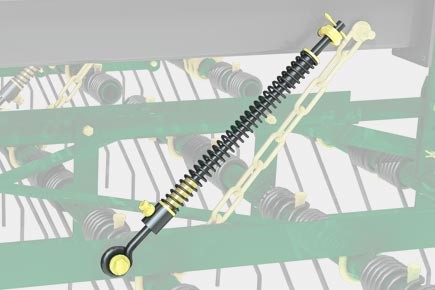

Down Pressure Springs
Down pressure springs offer high performance on heavy soils and other difficult conditions.
Options
Paint Color
With any custom Summers equipment order, choose between green or red, whichever best fits your farming operation.
Specifications
SH6350 (40'-60') Model
Working Width
40'
50'
60'
Estimated Weight
13,460 lbs.
15,925 lbs.
18,300 lbs.
Transport Width
14' 4"
14' 4"
14' 4"
Transport Height
11'
11'
11'
Center Section Width
10'
10'
10'
Wing Width
15'
20'
25'
Number of 5' Harrow Sections
8
10
12
Number of Packer Sections
8
10
12
Hitch Length
22'
22'
22'
Hitch Construction
4" x 8" tubing
4" x 8" tubing
4" x 8" tubing
Drawbar Construction
8" x 8" tubing
8" x 8" tubing
8" x 8" tubing
Hitch Tires (4)
IF280/70 R15
IF280/70 R15
IF280/70 R15
Drawbar Tires (2)
IF280/70 R15
IF280/70 R15
IF280/70 R15
Transport Tires (2)
IF280/70 R15
IF280/70 R15
IF280/70 R15
Approx. Engine HP*
122-147
153-184
184-220
* Engine horsepower required will vary upon soil conditions, tillage depth and operating speed
SH6350 (70'-80') Model
Working Width
70'
80'
Estimated Weight
20,740 lbs.
23,130 lbs.
Transport Width
14' 4"
14' 4"
Transport Height
11'
11'
Center Section Width
10'
10'
Wing Width
30'
35'
Number of 5' Harrow Sections
14
16
Number of Packer Sections
14
16
Hitch Length
22'
22'
Hitch Construction
4" x 8" tubing
4" x 8" tubing
Drawbar Construction
8" x 8" tubing
8" x 8" tubing
Hitch Tires (4)
IF280/70 R15
IF280/70 R15
Drawbar Tires (2)
IF280/70 R15
IF280/70 R15
Transport Tires (2)
IF280/70 R15
IF280/70 R15
Approx. Engine HP*
214-257
245-294
* Engine horsepower required will vary upon soil conditions, tillage depth and operating speed
