Diamond Technology


A. Diamond shape floats over rocks without damage
B. 19-degree front gang moves soil inward
C. 18-degree rear gang returns soil outward to eliminate ridging without the use of outside feathering disks
D. The rear, center finishing coulter sizes residue and levels the soil
E. Triangular wheel arrangement prevents ridging, skipping and gouging
F. Finishing options create the ideal seedbed

Notched Disk Blades


The DT Diamond Disk uses 25-inch diameter blades with 1-7/8-inch concavity, making it ideal for sizing heavy residue and working in wetter soil conditions. The blades are mounted on heavy-duty 2-inch shafts and include adjustable mud scrapers that flex with the disk blades. Duracoat disk blades with WEAR-TUFF lining are also available to extend blade life by as much as 3 to 5 times.

Floating Hitch


Tillage depth is not affected by the tractor wheels, thanks to the floating hitch. Side draft is also practically eliminated because the disk pulls evenly.

Super-Flex C-Shanks and Ductile Cast Spools


The Super-Flex C-Shanks are an exclusive feature from Summers to absorb shocks and extend the life of the tillage components. To further maximize durability, the toggle-mounted, triple-seal ball bearings are designed to self-align as the gang flexes, and the spools are ductile cast for superior strength.

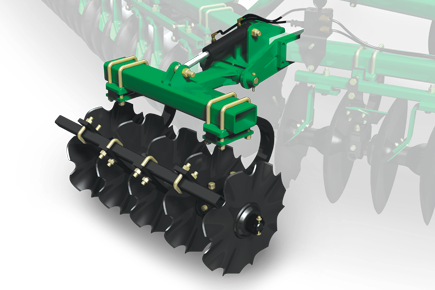

Finishing Coulter Gang


The rear, center finishing coulter gang sizes residue and levels the centerline to provide a uniform soil profile. It uses active hydraulic down pressure for maximum performance.

Single-Point Depth Control


The depth setting for the entire implement can be adjusted from just one of the hydraulic cylinders.
